  4. GOLD 5 Trays – GN 1/1 530×325 – EN 600×400
GOLD

5 Trays - GN 1/1 530x325 - EN 600x400

Blast Chillers
Included Grills
N.1 - EN 600x400 - Stainless steel
Isolation thickness
60 mm
Refrigerant gas
R290
  • Blast chillers with cataphoresis-coated evaporator, easy to clean by opening the fan support door from inside the chamber.
  • Manual defrosting.
  • Option to select blast chilling (+3°C at core) or shock freezing (-18°C at core) function, regulated either by temperature or time.
  • MINIMUM AMBIENT OPERATING TEMPERATURE +20°C.
  • Condensate water drained by gravity into collection tray via down pipe.
  • Non-reversible door with automatic closure and fixed opening position at 100°.
  • Seven-chamber magnetic gasket, easy to remove.
  • 7″ capacitive touch screen (on door front).
  • Adjustable feet in AISI 304 stainless steel.
  • AISI 304 stainless steel guides and racks – Adjustable and removable.
dalmec-ristorazione-pasticceria-abbattitore-gold-5-teglie

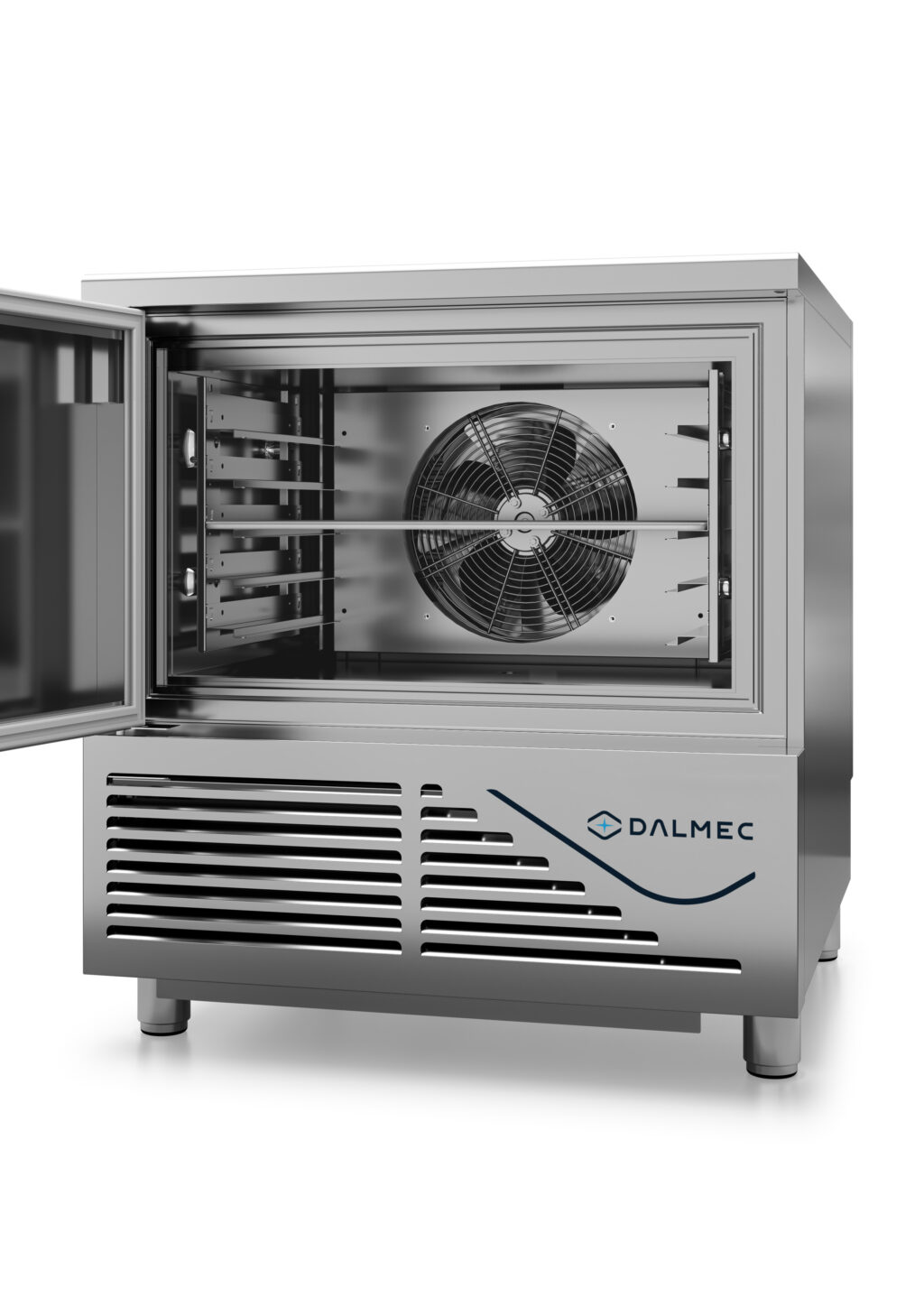

Dalmec_abbattitore_gold_dettaglio_allestimento_interno

Available models

PBSG056AC - (-40/+10) - Condensation: Air - Defrost: Air
Technical details
Size
790x700x850 mm
Box size
850x900x1100 mm
Net weight
92 kg
Temperature
(-40/+10) C°
Defrost
Air
Condensation
Air
Cooling Performance
1451 / 608 W
Blast chilling performance
26,0 (+90/+3) kg
Freezing Performance
16,0 kg
Voltage
AC230V 1N+T 50Hz
Absorbed Power
1100 W
Table type
Smooth worktop
Load capacity
N.5 - GN 1/1 530x325 o EN 600x400
Downloads
Dalmec Technical Sheet
Download
Neutral technical sheet
Download
Manual
Login to download
Login or register to download files

Ideal for

Bakery
Food service
Ice cream
Pastry

Accessories

AM14801
Grid
Stainless steel GN 1/1 530x325
AM14802
Grid
Stainless steel EN 600x400
ADC8007010A
Bottle shelf
Stainless steel 600x400
ADC7007010A
Bottle shelf
Stainless steel GN 1/1
AKITRU04BC
4-wheel kit
Specify when ordering. H 90 mm Ø 60 mm (2 with brake, 2 without brake)
AKITEVCONDA3
Condensate evaporation kit
Specify when ordering. For blast chillers
AKIT06043
Core probe
Heated. Not available for 3-tray GN 2/3 model.
6H
60Hz Voltage
To be specified when ordering.
UK
Cable with UK plug
To be specified when ordering.
VERNICIATURA
RAL colour coating
Specify when ordering. Price on request
