PLUS

700 - SINK - 4 doors

Refrigerated counters with sink

Load capacity

N.9 (passo 55 mm) x porta - GN 1/1 530x325

Isolation thickness

60 mm

Refrigerant gas

R290

Refrigerated counters with sink with monoblock unit, partially extractable, forced-air refrigeration rated for climate class 5 (tropicalised).
Evaporator with cataphoretic coating, automatic defrost managed by digital controller.
Condensate drainage via gravity drain tube.
Door with automatic closure and fixed opening position at 100°.
Seven-chamber magnetic gasket, easy to remove.
Capacitive touch screen Adjustable feet in AISI 304 stainless steel.
AISI 304 stainless steel guides and racks – Adjustable and removable.

dalmec-ristorazione-tavoli-plus-700-lavello-4porte-alzatina

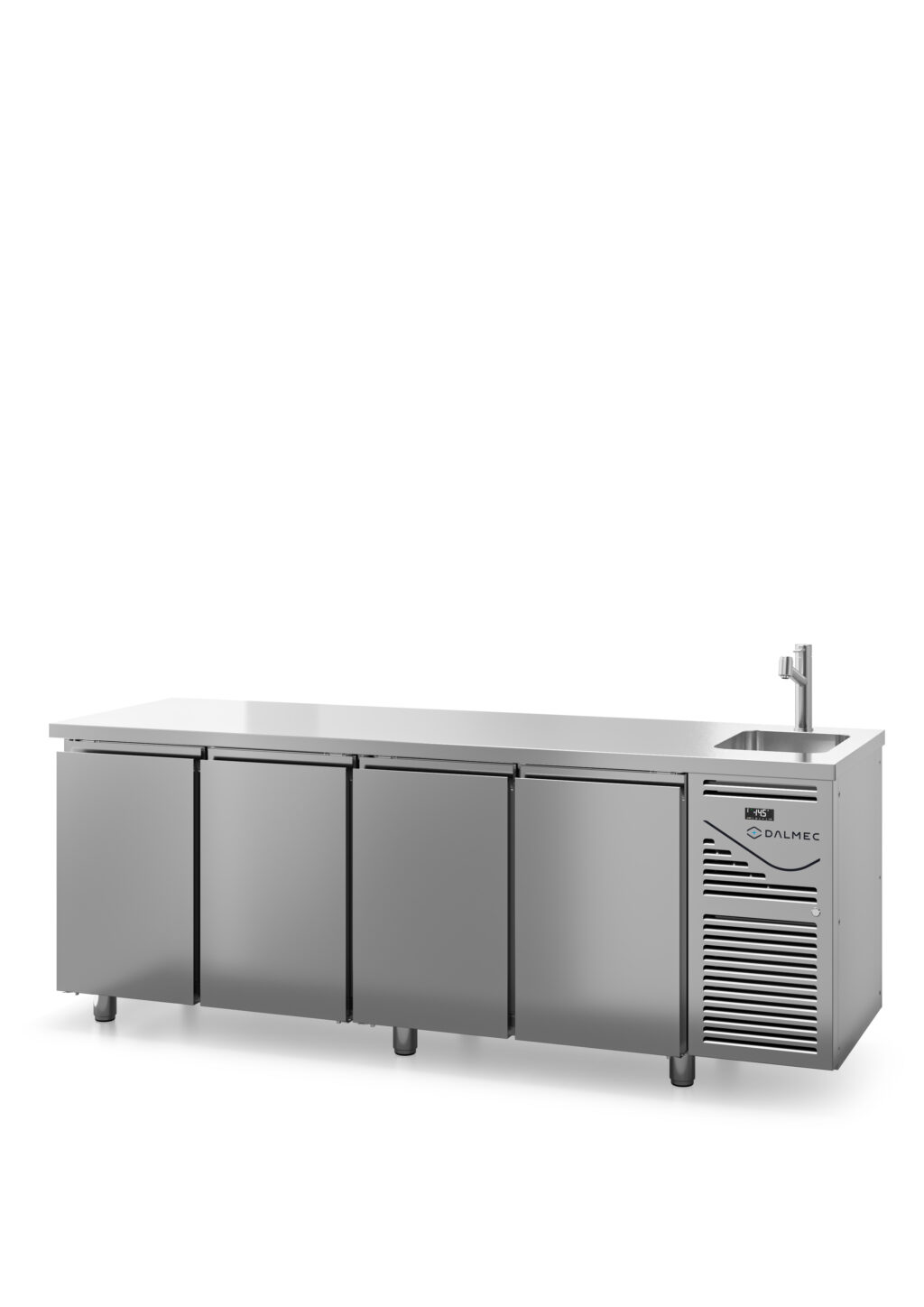

dalmec-ristorazione-tavoli-plus-700-lavello-4porte-pianoliscio

Available models

PECL704ANAL - (0/+10) - Worktop with splashback inserted bowl - H 710 mm

Technical details

Size

2180x700x950 mm

Box size

2220x730x1100 mm

Net weight

143 kg

Temperature

(0/+10) C°

Energy class

Defrost

Air

Condensation

Air

Cooling Performance

872 W

Voltage

AC230V 1N+T 50Hz

Absorbed Power

350 W

Table type

Worktop with splashback inserted bowl

Table heigth

H 710 mm

Load capacity

N.9 (passo 55 mm) x porta - GN 1/1 530x325

Downloads

Dalmec Technical Sheet

Download

Neutral technical sheet

Download

Manual

2D file

PECL704ANLI - (0/+10) - Smooth worktop inserted bowl - H 710 mm

Technical details

Size

2180x700x850 mm

Box size

2220x730x1100 mm

Net weight

140 kg

Temperature

(0/+10) C°

Energy class

Defrost

Air

Condensation

Air

Cooling Performance

872 W

Voltage

AC230V 1N+T 50Hz

Absorbed Power

350 W

Table type

Smooth worktop inserted bowl

Table heigth

H 710 mm

Load capacity

N.9 (passo 55 mm) x porta - GN 1/1 530x325

Downloads

Dalmec Technical Sheet

Download

Neutral technical sheet

Download

Manual

2D file

PECL704D2AL - (-2/+10) - Worktop with splashback inserted bowl - H 710 mm

Technical details

Size

2180x700x950 mm

Box size

2220x730x1100 mm

Net weight

143 kg

Temperature

(-2/+10) C°

Energy class

Defrost

Electric

Condensation

Air

Cooling Performance

872 W

Voltage

AC230V 1N+T 50Hz

Absorbed Power

350 W

Table type

Worktop with splashback inserted bowl

Table heigth

H 710 mm

Load capacity

N.9 (passo 55 mm) x porta - GN 1/1 530x325

Downloads

Dalmec Technical Sheet

Download

Neutral technical sheet

Download

Manual

2D file

PECL704D2LI - (-2/+10) - Smooth worktop inserted bowl - H 710 mm

Technical details

Size

2180x700x850 mm

Box size

2220x730x1100 mm

Net weight

140 kg

Temperature

(-2/+10) C°

Energy class

Defrost

Electric

Condensation

Air

Cooling Performance

872 W

Voltage

AC230V 1N+T 50Hz

Absorbed Power

350 W

Table type

Smooth worktop inserted bowl

Table heigth

H 710 mm

Load capacity

N.9 (passo 55 mm) x porta - GN 1/1 530x325

Downloads

Dalmec Technical Sheet

Download

Neutral technical sheet

Download

Manual

2D file

PPCL704ANAL - (0/+10) - Worktop with splashback welded bowl - H 710 mm

Technical details

Size

2180x700x950 mm

Box size

2220x730x1100 mm

Net weight

143 kg

Temperature

(0/+10) C°

Energy class

Defrost

Air

Condensation

Air

Cooling Performance

872 W

Voltage

AC230V 1N+T 50Hz

Absorbed Power

350 W

Table type

Worktop with splashback welded bowl

Table heigth

H 710 mm

Load capacity

N.9 (passo 55 mm) x porta - GN 1/1 530x325

Downloads

Dalmec Technical Sheet

Download

Neutral technical sheet

Download

Manual

2D file

3D file

PPCL704ANLI - (0/+10) - Smooth worktop welded bowl - H 710 mm

Technical details

Size

2180x700x850 mm

Box size

2220x730x1100 mm

Net weight

140 kg

Temperature

(0/+10) C°

Energy class

Defrost

Air

Condensation

Air

Cooling Performance

872 W

Voltage

AC230V 1N+T 50Hz

Absorbed Power

350 W

Table type

Smooth worktop welded bowl

Table heigth

H 710 mm

Load capacity

N.9 (passo 55 mm) x porta - GN 1/1 530x325

Downloads

Dalmec Technical Sheet

Download

Neutral technical sheet

Download

Manual

2D file

3D file

PPCL704D2AL - (-2/+10) - Worktop with splashback welded bowl - H 710 mm

Technical details

Size

2180x700x950 mm

Box size

2220x730x1100 mm

Net weight

143 kg

Temperature

(-2/+10) C°

Energy class

Defrost

Electric

Condensation

Air

Cooling Performance

872 W

Voltage

AC230V 1N+T 50Hz

Absorbed Power

350 W

Table type

Worktop with splashback welded bowl

Table heigth

H 710 mm

Load capacity

N.9 (passo 55 mm) x porta - GN 1/1 530x325

Downloads

Dalmec Technical Sheet

Download

Neutral technical sheet

Download

Manual

2D file

3D file

PPCL704D2LI - (-2/+10) - Smooth worktop welded bowl - H 710 mm

Technical details

Size

2180x700x850 mm

Box size

2220x730x1100 mm

Net weight

140 kg

Temperature

(-2/+10) C°

Energy class

Defrost

Electric

Condensation

Air

Cooling Performance

872 W

Voltage

AC230V 1N+T 50Hz

Absorbed Power

350 W

Table type

Smooth worktop welded bowl

Table heigth

H 710 mm

Load capacity

N.9 (passo 55 mm) x porta - GN 1/1 530x325

Downloads

Dalmec Technical Sheet

Download

Neutral technical sheet

Download

Manual

2D file

3D file

Ideal for

Food service

Accessories

AM14801

Grid

Stainless steel GN 1/1 530x325

AM14809

Grid

Polyethylene GN 1/1 530x325

ADC7007010A

Bottle shelf

Stainless steel GN 1/1

ADC7007039A

Connecting shelf

1 x (48x515.5 mm)

AKITGLT70

Pair of L-profile tray holders

2 x (514.5x20 mm) - GN 1/1 530x325

AKITGUT70

Pair of C-profile tray holders

2 x (514.5x20 mm) - GN 1/1 530x325

AKITZCCT704H100

Plinth

AISI 304 stainless steel plinth. H 100 mm

AKITZCCT704H150

Plinth

AISI 304 stainless steel plinth. H 150 mm

Motor on left

Specify when ordering. No variation to the unit price.

AKITPCDDX

Openable control panel

Specify when ordering. For motor on right - Dalmec

AKITPCDSX

Openable control panel

Specify when ordering. For motor on left - Dalmec

60Hz Voltage

To be specified when ordering.

AM09513

Tap for counter with sink

Connection kit

Specify when ordering. Wi-Fi kit

Connection kit

Specify when ordering. TTL kit

Connection kit

Specify when ordering. Bluetooth kit

Cable with UK plug

To be specified when ordering.

VERNICIATURA

RAL colour coating

Specify when ordering. Price on request
